  Full HD 1080P 60FPS 2K 3800W 38MP Hdmi Video Microscope Camera

  Sale!

  Quick view

  ₹8,500.00 Original price was: ₹8,500.00.₹6,800.00Current price is: ₹6,800.00.

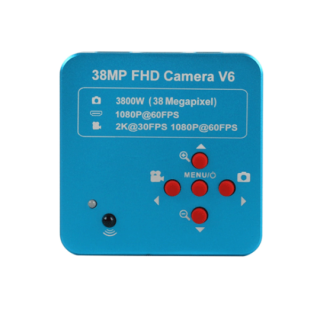

  FULL HD 1080P 60FPS 2K 3800W 38MP HDMI USB INDUSTRIAL ELECTRONIC DIGITAL VIDEO MICROSCOPE CAMERA

  • MODEL:1714
  • WEIGHT:0.40kg



  Sensor :Panasonic CMOS
  Optical format:1/2.3 inch

  pixel size:1.335μm x1.335μm

  Interface:HDMI(Type A).USB(Type B).TF Card

  Image resolution:21MegaPixel

  Video record resolution:2K@30FPS 1080p@60FPS

  HDMI resoltion:1920*1080p 60FPS

  Can output with USB at the same time

  HDMI scale:Support 4:3,16:9,16:10 screen

  USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS

  Can output with HDMI at the same time

  TF card:MAX 64GB

  AWB:WB color correction/Auto/Manual

  R.G.B value setting independent

  Exposure:Auto/Manual.AE value can set

  Cross lines:8lines.Can set color& width& position

  Scale mark lines:2lines.

  Dotted lines:2lines.Can set color& width& position

  Sharpness Contrast Color gain:Support

  Mono Negative:Support

  Mirror:Horizontal vertical mirror

  Language:English/simplified Chinese

  Digital Zoom:Support

  IR remoter:Support

  Voltage in:DC 12V 55-21mm size

  Power consumption:MAX 0.15W  12V,0.12A

  Lens interface:C/CS口

  Net weight:180g

  Gross weight:400g

  Camera size:74*74*35mm

  Packaging size:160*100*80mm

  Questions Solutions:

  LCD no video or flicker

  1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.

  2.Check lens cover. Increase the lighting.

  LCD have black bar Image warp

  1.change resolution of LCD

  2.change resolution of camera

  Have dirty spot

  1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

  Package incluede:

  1 x Microscope Camera 38MP

  1 x Power Adapter

  1 x IR remoter ( Without Battery )

  1 x HDMI Lines

  1 x Paper Manual

  Read more
