GVM T12-XS Soldering Station For Mobile Phone Bga Rework
₹2,550.00
Out of stock
Product Specification
Power Consumption | 75W |
Temperature Range | 150 DegreeC – 450 DegreeC |
Display Type | Digital |
Material | Metal |
Automation Grade | Automatic |
Weight | 2 Kg |
Model Name/Number | Gvm T12-XS |
Adjustable Temperature | Yes |
Warranty | Testing |
Product Description

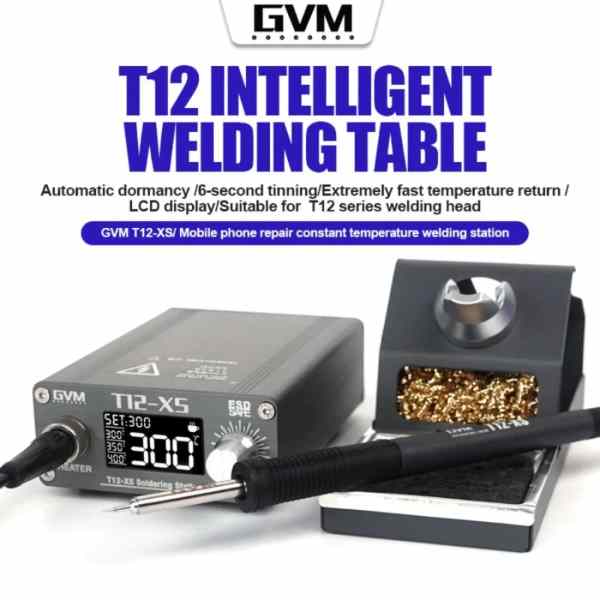

GVM T12-XS Professional Constant Temperature Soldering Station for Mobile Phone BGA Rework
Features:
- Applicable to electronic maintenance, such as welding workshop of the electronic factory, electronic repair, mobile phone maintenance, etc
- Rapid heating,6 seconds of tin melting, and large and small solder joints are not difficult
- No need to disassemble the handle, disassemble and replace it in 2 seconds, bid farewell to cumbersome, plug-and-play, integrated design, efficient heat conduction, and temperature recovery, reduce heat loss, and easy to solder
- Automatic dormancy and standby can greatly prolong the life of the heating core save electricity and reduce potential risks
- LCD display, the temperature is intuitive and controllable at any time

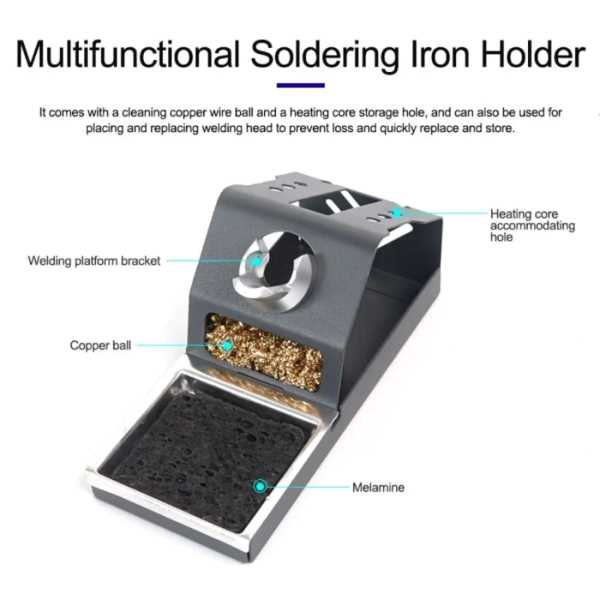

- It comes with a cleaning copper wire ball and a heating core storage hole, and can also be used for placing and replacing welding heads to prevent loss and quickly replace and store

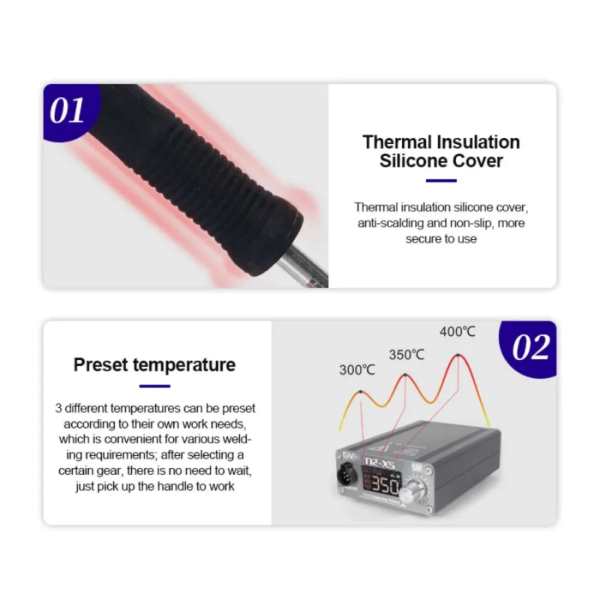

- Thermal insulation silicone cover, anti-scalding and non-slip, more secure to use
- 3 different temperatures can be preset according to their own work needs, which is convenient for various welding requirements; after selecting a certain gear, there is no need to wait, just pick up the handle to work
- Palm-sized, portable for business trips, solving the problem that traditional soldering stations are difficult to carry
- Can be matched with other types of soldering iron tips of 112 series according to your own needs
Specification:
- Brand: GVM
- Product Name: Mobile Phone Repair Constant Temperature Welding Station
- Model: Gvm T12-XS
- Net Weight: About 800g
- Gross Weight: About 1200g

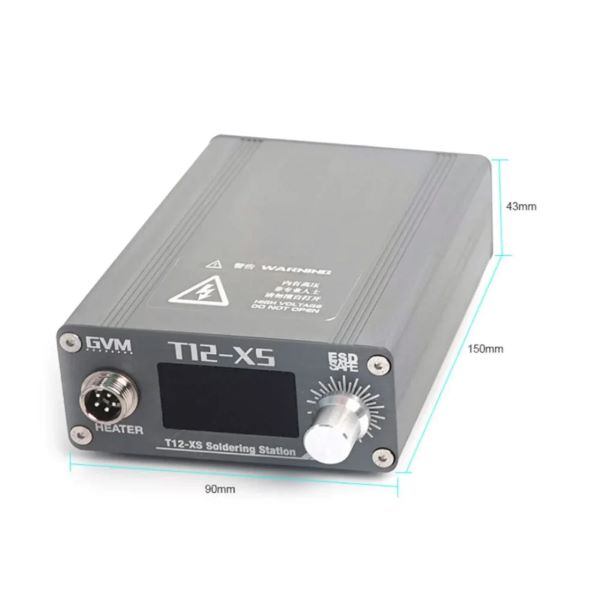

- Product Size: 150*90*43mm

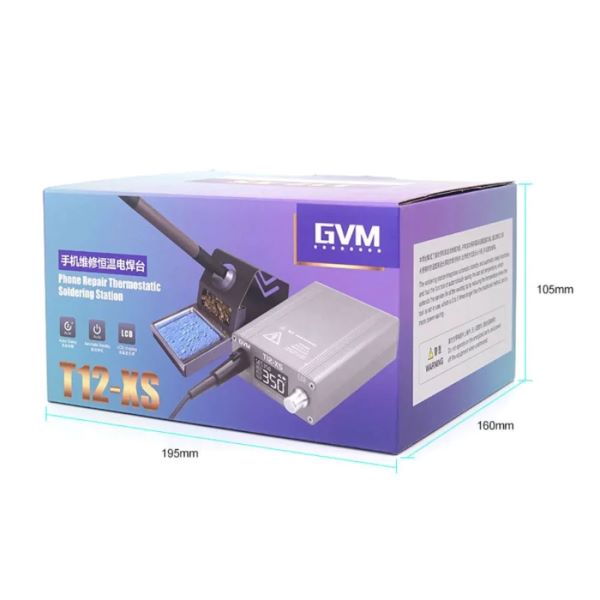

- Package Size: 195*160*105mm
- Temperature Range: 80~480°C
- Automatic Standby: Support
- Automatic Sleep: Support
- Voltage Range: AC 90~230V, 50/60Hz, 5A
- Peak Power: 72W
- Heating Method: Intelligent Pid Temperature Control
- Temperature Preset: 300/350/400°C
- Display Method: LCD Display
- Operating Temperature: 10-40°C/50-122°F

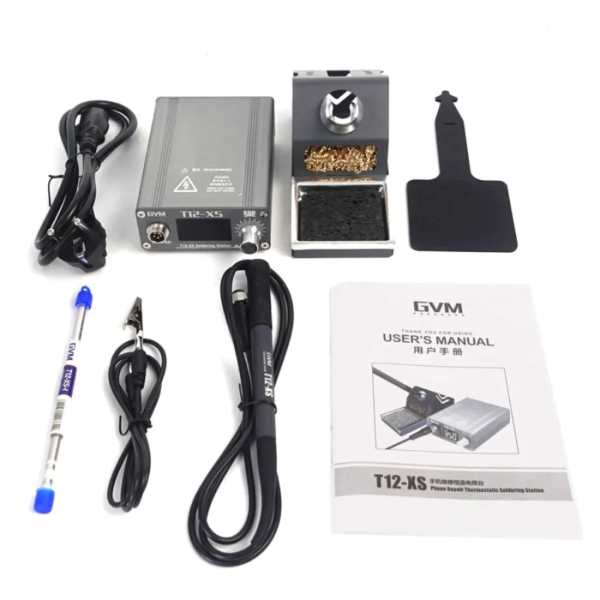

Package includes:
- 1 x Soldering station
- 1 x Soldering iron tip
- 1 x Cleaning sponge
- 1 x Copper wire ball
- 1 x Solder iron holder
- 1 x Silicone pad
- 1 x Soldering station handle
- 1 x Ground wire
- 1 x Power supply cable
