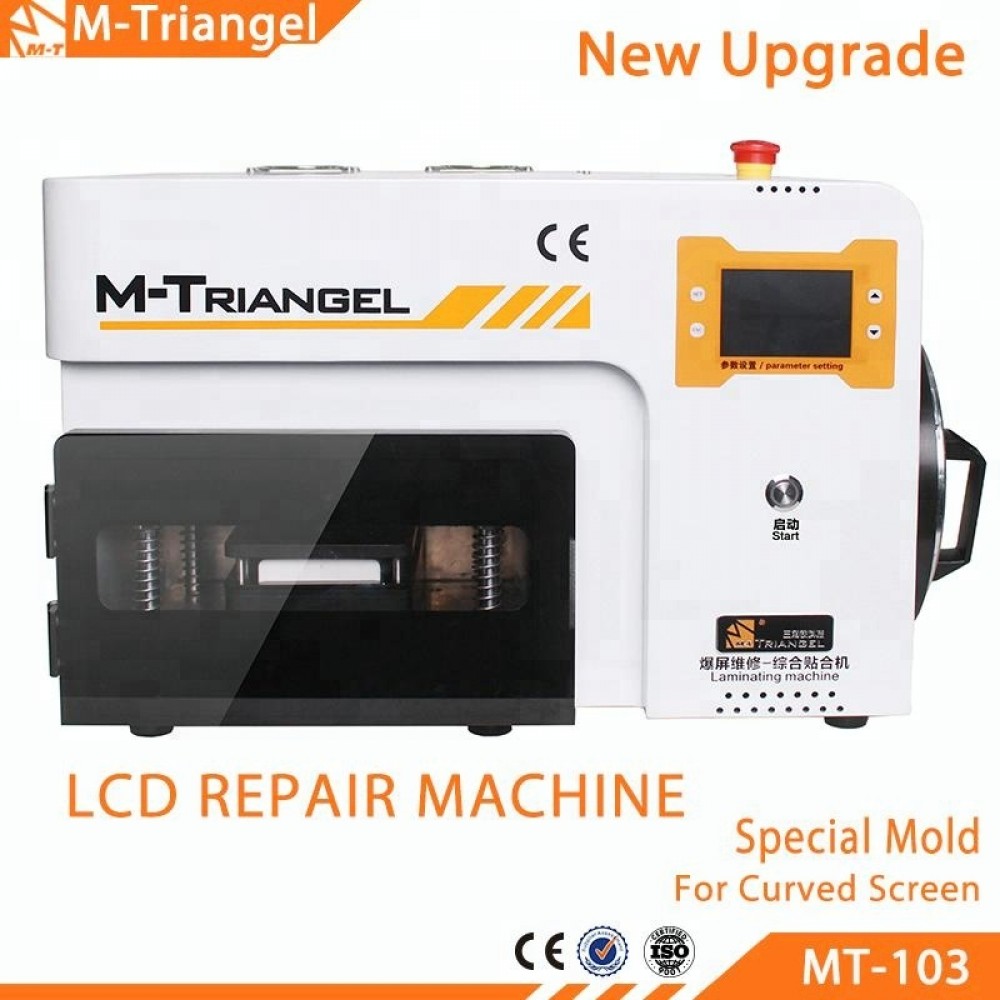

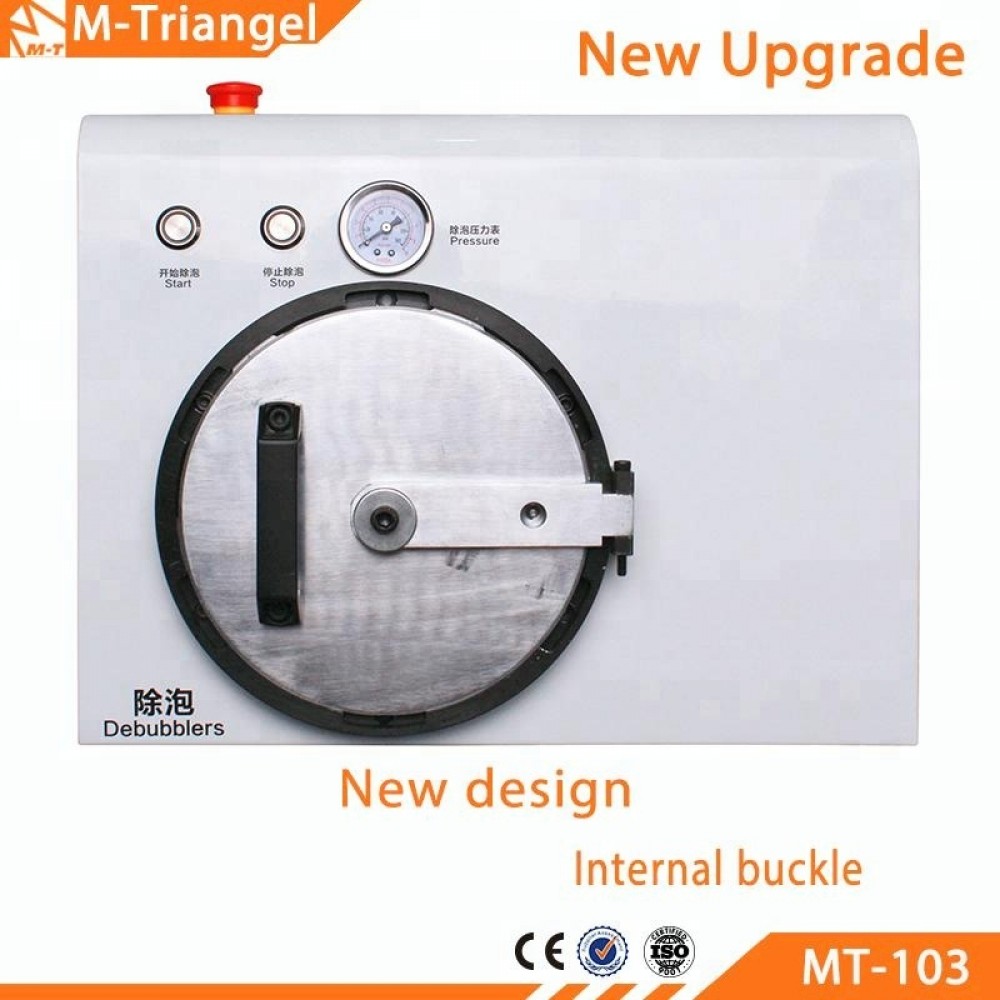

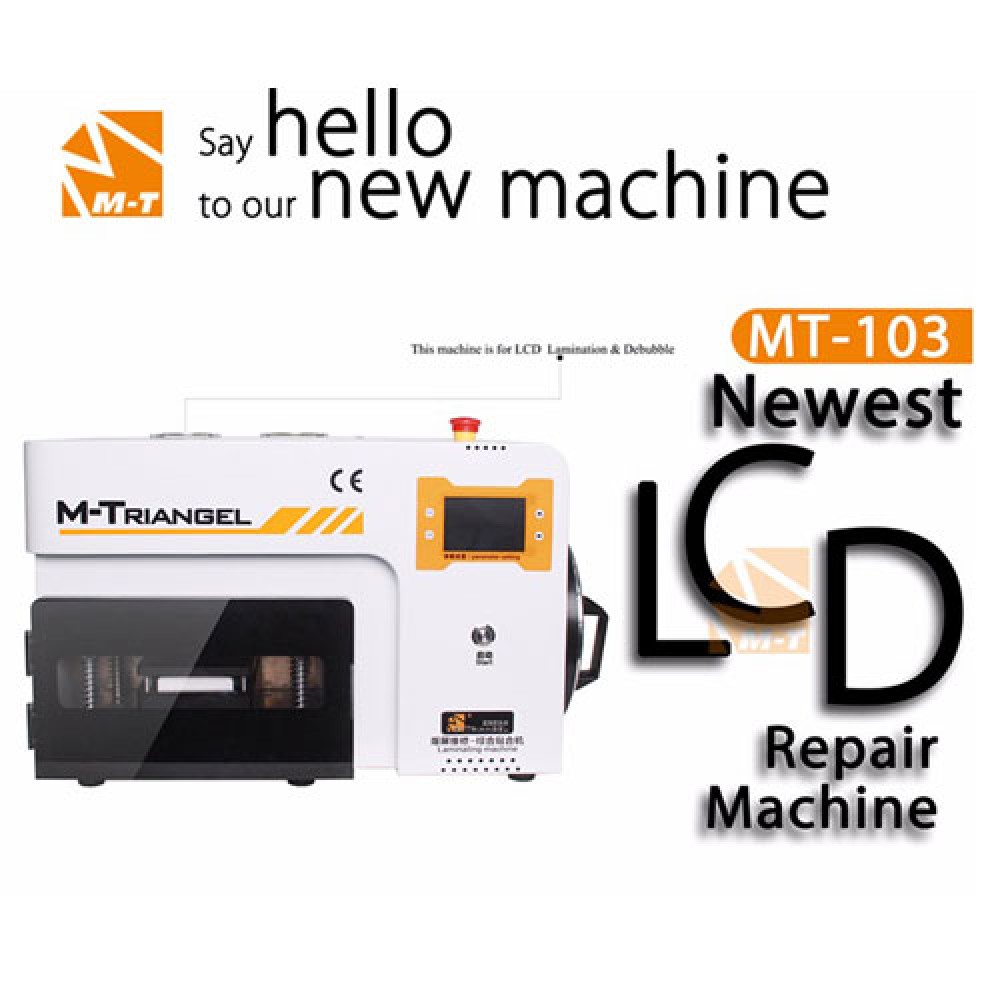

M-TRIANGEL (MT-103) LCD LAMINATING WITH EDGE SUPPORT & BUBBLE REMOVER MACHINE
₹70,000.00
Function
1. Latest upgrades LCD Reapir Machine For LCD, LED, OLED laminating, air bubbles removing;
2. Specially designed for Samsung S6 S7 S8 Edge Curved Screen;
3. The latest design Debubble door,More safety,Easy operation, one button to start, touch panel system control;
4. Also Suitable for Iphone, samsung, HTC, Nokia, Sony, Huawei, XiaoMi….
5.Special mold For More accurate alignment,More efficient doing Curved Screen LCD Repair;
6.All in one machine,built In vacuum pump and air compressor;
M-TRIANGEL (MT-103) LCD LAMINATING WITH EDGE SUPPORT & BUBBLE REMOVER MACHINE
Function
1. Latest upgrades LCD Reapir Machine For LCD, LED, OLED laminating, air bubbles removing;
2. Specially designed for Samsung S6 S7 S8 Edge Curved Screen;
3. The latest design Debubble door,More safety,Easy operation, one button to start, touch panel system control;
4. Also Suitable for Iphone, samsung, HTC, Nokia, Sony, Huawei, XiaoMi….
5.Special mold For More accurate alignment,More efficient doing Curved Screen LCD Repair;
6.All in one machine,built In vacuum pump and air compressor;
Product Name
|
LCD Repair Machine
|
Model
|
MT-103
|
Type
|
Built In vacuum pump and air compressor
|
Voltage/Watt
|
220v,110v/800W
|
Equipment /Packing size:
|
535*425*355 mm/620*520*440mm
|
Net/Gross Weight:
|
56.5kg/70kg
|
Packing
|
Wooden box
|
Certifficate
|
CE
|
Lamination time
|
60s/pcs
|
Bubble removing time
|
5-10min(de-bubble chamber could load 20pcs LCD at the same time)
|
Warranty
|
12 months Â
|
Package Content*
1x MT-103 Oca Machine
WEIGHT:80.00kg
Weight | 80 kg |
---|
