Name: Yihua 948Dq-III Smoke Absorb Soldering Station
SKU: 9482
Availability: InStock

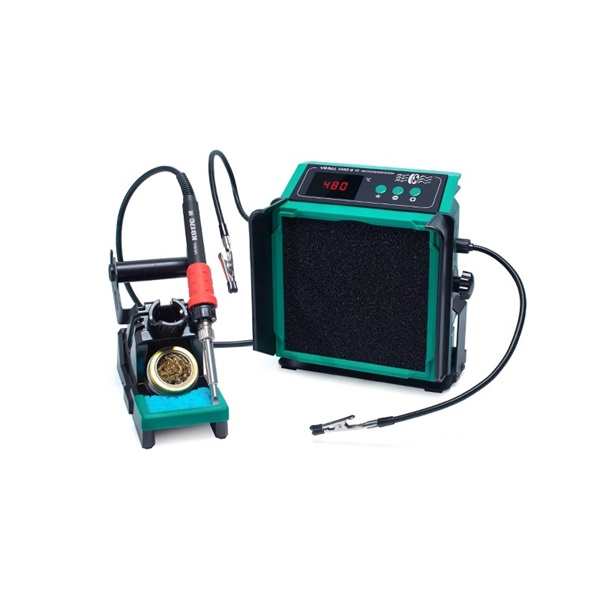

Yihua 948Dq-III Smoke Absorb Soldering Station

Yihua 948Dq-III Digit Display Multiple Function Helping Hand Smoke Absorb Soldering Iron Fume Extracting Soldering Station

Ask for help

This is Yihua 948Dq-III Digit Display Multiple Function Helping Hand Smoke Absorb Soldering Iron Fume Extracting Soldering Station.

The Yihua 948Dq-III is a soldering station with a built-in smoke-absorbing function. It features a digital display that shows the temperature of the soldering iron, and has multiple functions to help with soldering tasks. The helping hand feature holds the workpiece steady while soldering, and the smoke-absorbing function helps to remove harmful fumes generated during the soldering process. The station also has a built-in fan to help dissipate the smoke.

Features:

Capable of Soldering & Desoldering operations
The 948DQ-III combines a fume extractor and a high-performance temperature-controlled soldering station.
Double Filtering: This fume extractor is fitted with 9mm thick high quality activated carbon filters to provide better adsorption, further reducing the toxic content inside the fume.
Effectively extract and purify the fumes generated from soldering, wood burning, stained glass making, and more. Ensuring a safe work environment, protecting you from harmful fumes.

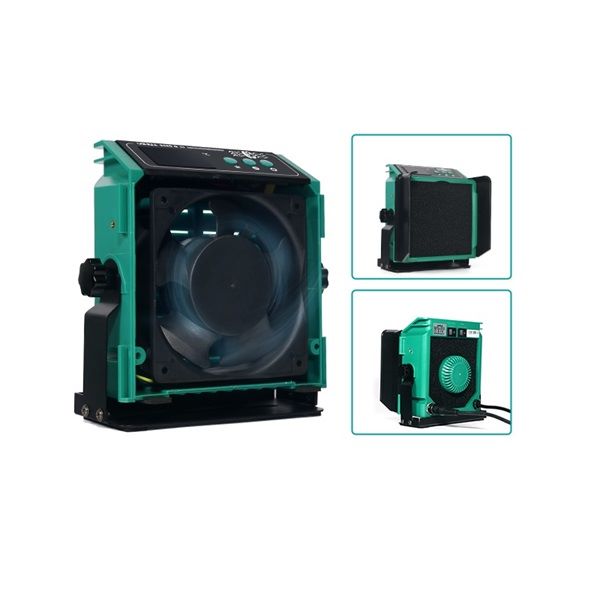

The 5-blade fan design provides effective suction, and the fan has a longer operating lifespan while putting out less noise when operating.
The fume-directing fender design redirects the fume to the extraction fan, amplifying the effective fume extraction area.

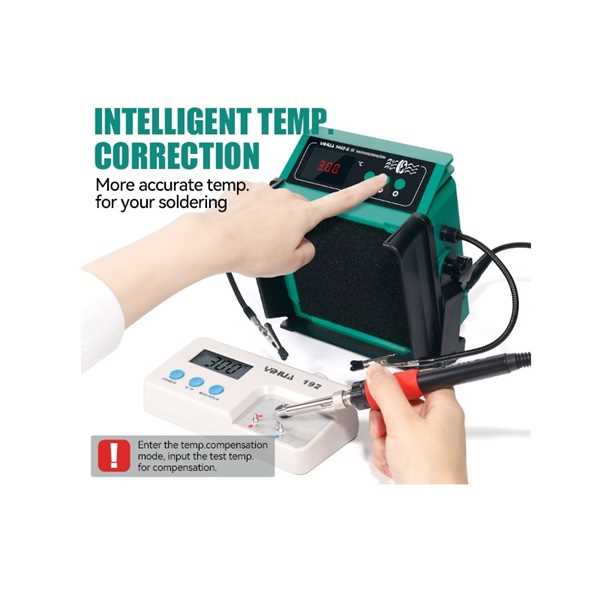

The soldering iron handpiece uses the 110W ceramic heating element. This handpiece comes with a built-in thermocouple and PID temperature stabilization microcontroller to provide reliable performance.
When nonuse for longer than 10 minutes, the soldering iron enters low-temperature idling sleep mode. This function extends the lifespan of the soldering iron.

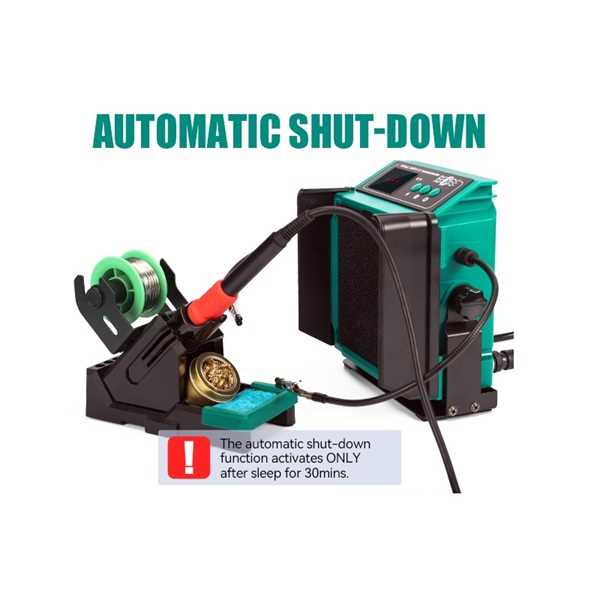

When the soldering station is not restarted from sleep mode for longer than 30 minutes, the station shuts down automatically
Model: 948DQ-III
Input Voltage: AC110~127V 60Hz or 220~240V 50Hz
Rated Power: 25W (Max.200W)
Heating element: 110W
Size: 90 x 145 x 164mm ±5mm
Temperature Range: 392~896°F / 200~480°
