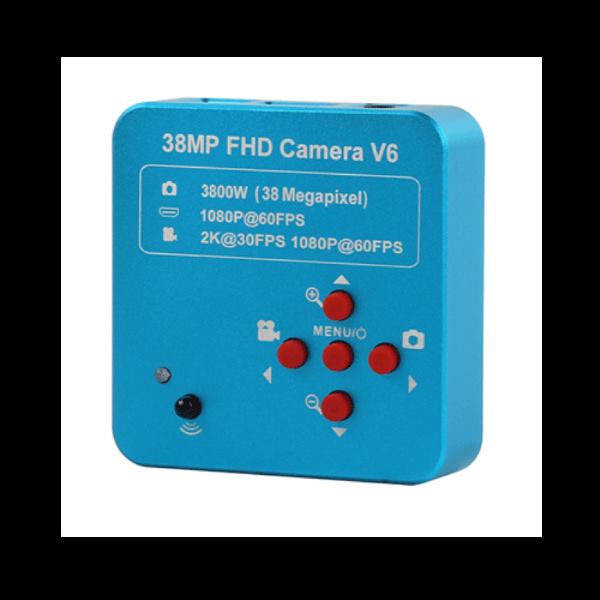

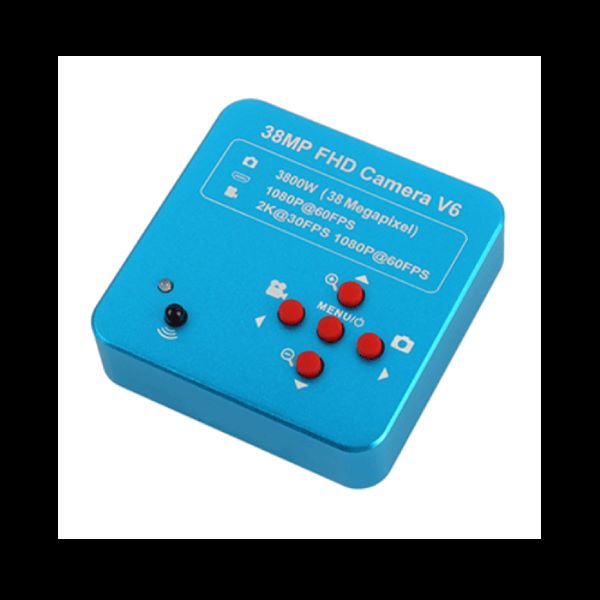

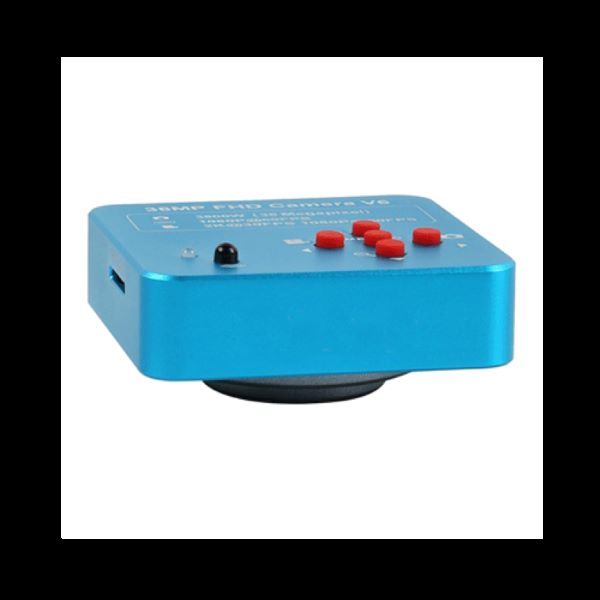

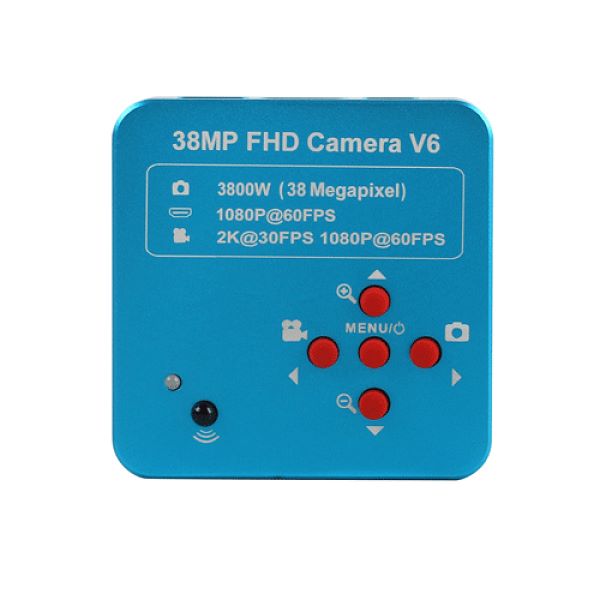

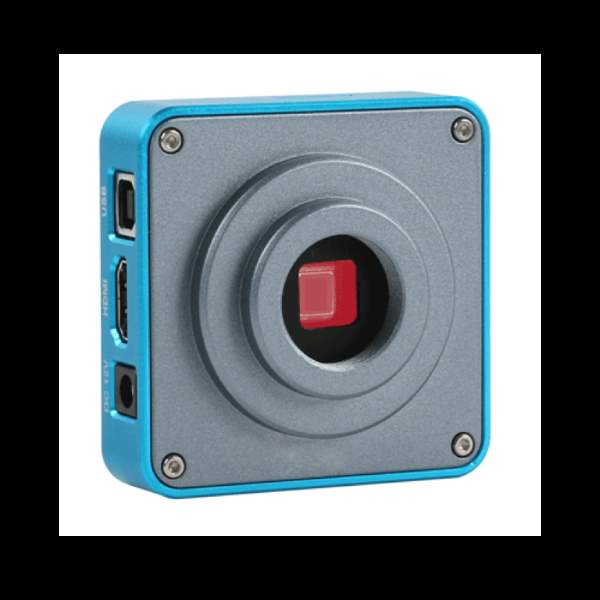

Full HD 1080P 60FPS 2K 3800W 38MP Hdmi Video Microscope Camera
Full HD 1080P 60FPS 2K 3800W 38MP Hdmi Video Microscope Camera - Image 2
Full HD 1080P 60FPS 2K 3800W 38MP Hdmi Video Microscope Camera - Image 3
Full HD 1080P 60FPS 2K 3800W 38MP Hdmi Video Microscope Camera - Image 4
Full HD 1080P 60FPS 2K 3800W 38MP Hdmi Video Microscope Camera - Image 5

Full HD 1080P 60FPS 2K 3800W 38MP Hdmi Video Microscope Camera

Original price was: ₹8,500.00.Current price is: ₹6,800.00.

FULL HD 1080P 60FPS 2K 3800W 38MP HDMI USB INDUSTRIAL ELECTRONIC DIGITAL VIDEO MICROSCOPE CAMERA

  • MODEL:1714
  • WEIGHT:0.40kg



Sensor :Panasonic CMOS
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:21MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W  12V,0.12A
Lens interface:C/CS口
Net weight:180g
Gross weight:400g
Camera size:74*74*35mm
Packaging size:160*100*80mm
Questions Solutions:
LCD no video or flicker
1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.
2.Check lens cover. Increase the lighting.
LCD have black bar Image warp
1.change resolution of LCD
2.change resolution of camera
Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser
Package incluede:
1 x Microscope Camera 38MP
1 x Power Adapter
1 x IR remoter ( Without Battery )
1 x HDMI Lines
1 x Paper Manual

Out of stock

Add to wishlist
Continue Shopping Category: Tags: , , ,
Ask for help
Other

FULL HD 1080P 60FPS 2K 3800W 38MP HDMI USB INDUSTRIAL ELECTRONIC DIGITAL VIDEO MICROSCOPE CAMERA

  • MODEL:1714
  • WEIGHT:0.40kg



Sensor :Panasonic CMOS
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:21MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W  12V,0.12A
Lens interface:C/CS口
Net weight:180g
Gross weight:400g
Camera size:74*74*35mm
Packaging size:160*100*80mm
Questions Solutions:
LCD no video or flicker
1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.
2.Check lens cover. Increase the lighting.
LCD have black bar Image warp
1.change resolution of LCD
2.change resolution of camera
Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser
Package incluede:
1 x Microscope Camera 38MP
1 x Power Adapter
1 x IR remoter ( Without Battery )
1 x HDMI Lines
1 x Paper Manual
Weight 0.4 kg
Model:

1714

Brand

Other

Reviews

There are no reviews yet.

Be the first to review “Full HD 1080P 60FPS 2K 3800W 38MP Hdmi Video Microscope Camera”
