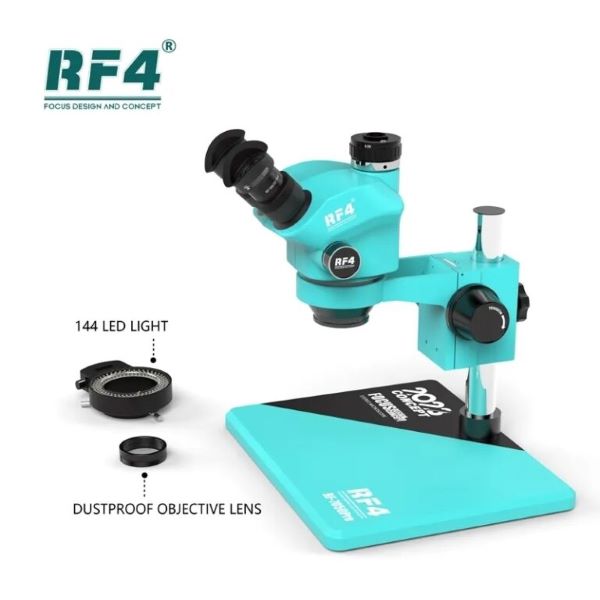

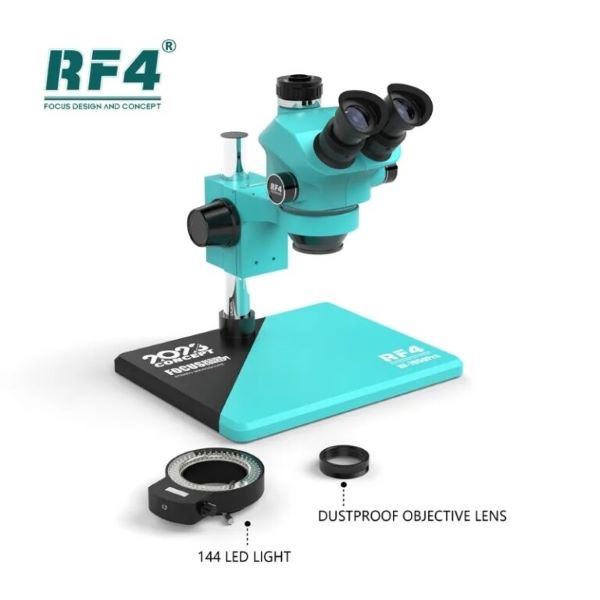

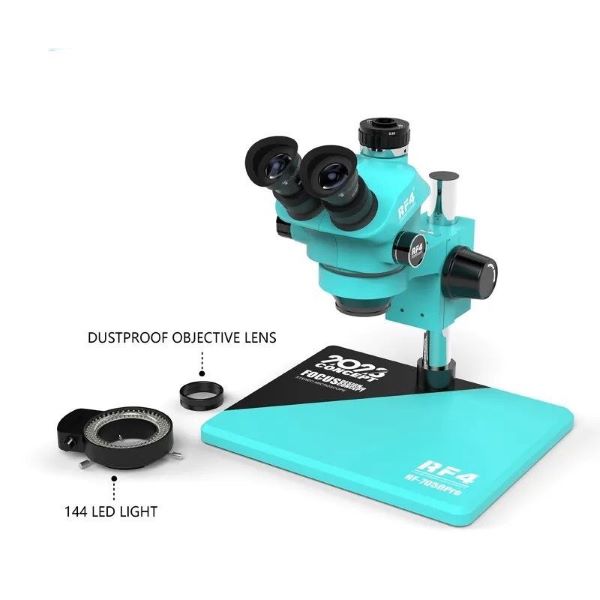

RF4 RF7050-Pro 7X~50X Trinocular Stereo Microscope

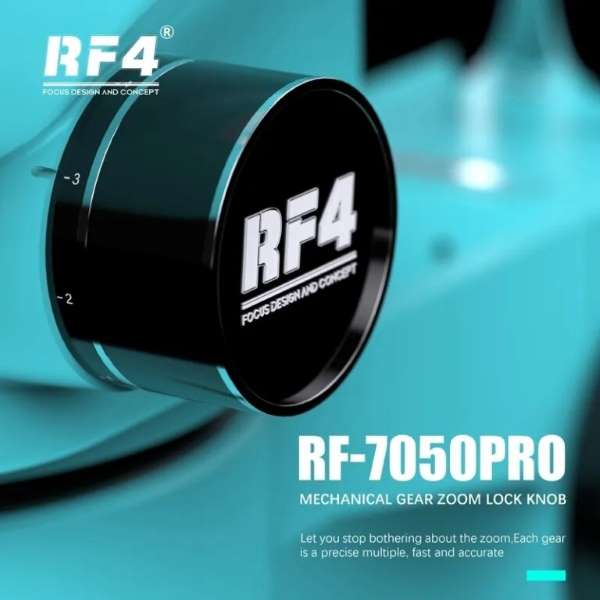

RF4 Latest Trinocular Microscope 7-50X Magnification Knob 6 Gear Locking Zoom Phone Electronic Component Repair RF-7050PRO

Upgraded eye mask with new ergonomic design to prevent light leakage and reduce fatigue. Ensure that residual light is not disturbed and the image remains visible even if the operator’s eyes move. This has been shown to reduce operator fatigue during long periods of continuous observation.
The RF4 R&D team has developed new eye sleeves to upgrade all microscopes in order to provide better working experience, improve working comfort and reduce fatigue of working under microscopes for long hours. The new mask is ergonomically designed to fit our eyes and prevent afterglow from interfering. After long testing by all regiments,
It has been shown to be effective in reducing user fatigue.

Product introduction

Stereomicroscopes are simple to operate and widely used.
1. Stereo microscope is simple to operate.
It is widely used. Zoology, biology, botany, entomology, Histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used for the inspection of raw materials and cotton-wool fabrics.
3. Used in the electronics industry as a triode welding, mobile phone electronic maintenance, watch maintenance and inspection and other operating tools.
4. In biological anatomy, used in regional anatomy.
5. In the manufacture of precision parts, it is used to observe the working process of machine tool equipment, check and assemble precision parts.
6. Check the surface quality of lenses, prisms or other transparent substances with precision ruler.
7. Cultural relics, books, coins, painting and calligraphy, inspection are widely used in textile products, chemical products, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

Features: Clear stereo sound, wide field of vision. Pupils are 54 to 75 mm apart.

The Angle of the observation head is 45°, and the diopter of the two tubes is adjusted. Simple operation, no fatigue after long-term use. Wide Field of View Eyepiece WF10X/22mm 10X wide-angle eyepiece with a field of view of 22mm, flat high Angle design, better for search and observation. Ergonomic design, shift hand wheel horizontal (axial) two-way setting, high repetition accuracy.

Product parameter :

Supporting parameter
Column aperture: Φ32mm
Lens aperture: Φ76mm
Center distance: 155mm
Lifting range: 50mm

Base parameter
Column height: 240mm
Diameter: φ32mm
Base: 380 x260x18mm

Wide-angle eyepiece 10X/22
Magnification: 10X
Wide visual field 22mm
Matching size: 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes.

The optimal eye height ensures that users can obtain clear images under different visual conditions. High angle wide-angle eyepieces are convenient for observers wearing glasses

0.5X adapter
1.The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome plated bayonet.
2.The adapter ring can use LCD to focus. This focusing mode is manual.
3. The adaptor has a transparent mirror inside that helps the microscope display and other displays achieve synchronous zoom.
4 Weight: 0.09kg.
5. RF4 Adjustable 144 LED Lighting Ring Light Source

Parameters
Input AC 100-240V, 50/60Hz
Output DC 12V, maximum 700mA
Maximum output 4.5w-6w
Eu/USA
Lead 144 LED
Lighting (30,000-35,000 Lux)
Color temperature 6000-7000 k
Light white
Inner diameter 60mm
144-led light
