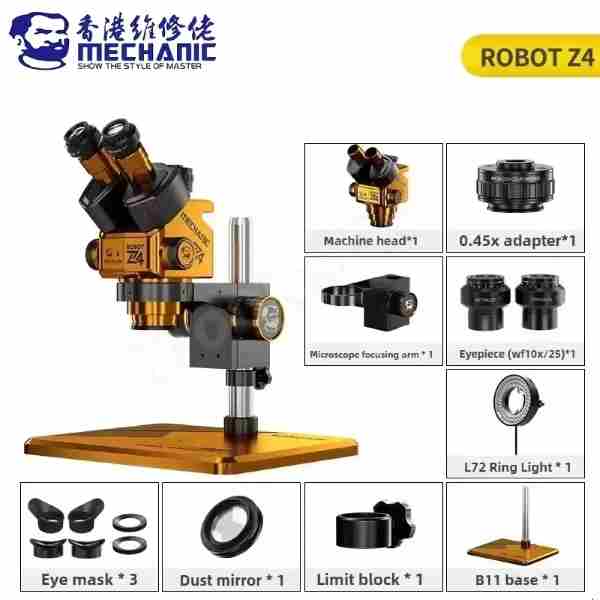

Mechanic Robot Z4-B11 Trinocular Stereo Microscope
The Mechanic Robot Z4-B11 is a professional-grade trinocular stereo microscope designed specifically for high-precision electronics repair, industrial inspection, and micro-soldering tasks. It is widely recognized in the mobile repair industry for its superior optics, ergonomic “robot” arm aesthetics, and the ability to seamlessly integrate digital imaging with optical viewing.
Below is a comprehensive technical breakdown and product description.
Mechanic Robot Z4-B11 Product Specifications
| Feature | Detailed Specification |
| Model | Mechanic Robot Z4-B11 |
| Optical System | Greenough Stereoscopic (Trinocular) |
| Zoom Ratio | 1:6.4 |
| Magnification Range | 7X – 45X (Standard); Expandable up to 3.5X–180X with auxiliary lenses |

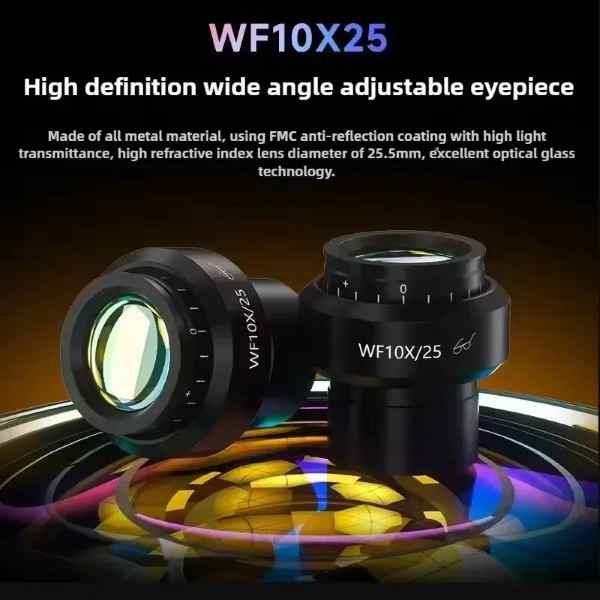

| Eyepieces | High Eyepoint Widefield WF10X/20mm (Adjustable diopter) |
| Objective Lens | 0.7X – 4.5X Zoom Objective |
| Working Distance | 100mm (Standard); Can be increased with 0.5X Barlow lens |
| Trinocular Port | 0.5X CTV Interface (Simul-focal) for HDMI/USB Cameras |
| Observation Head | 45° Inclined, 360° Rotatable Head |
| Interpupillary Distance | 54mm – 76mm |
| Focusing Mechanism | Dual-knob coarse focus with tension adjustment |
| Base/Stand Type | B11 Large Alloy Base with integrated tool slots |
| Lighting | Adjustable LED Ring Light (typically 56 or 72 LEDs) |
Brand
Mechanic
People also bought
-
Microscopes
Microscope 0.5X Stereo Objective Lens
₹800.00
Add to cartMICROSCOPE 0.5X STEREO OBJECTIVE LENS
- MODEL: 1627
- WEIGHT: 0.05kg
Microscope Lens 0.5X Stereo Objective Lens – Working Distance 165mm 177mm
0.5X Magnification Power
Working Distance: 165mm
Cutting Magnification Power by Half
1-7/8″ (48mm) Mounting ThreadPackage Contents:
1pcs 0.5X Objective Lens
-
Microscopes
0.5X C-MOUNT LENS 1/2 CTV ADAPTER FOR TRINOCULAR STEREO ZOOM MICROSCOPE CAMERA
₹1,750.00
Read more- MODEL: 1654
- WEIGHT: 0.05kg
This 1/2 CTV is used to connect the camera with the trinocular stereo microscope,
it will have a better visual image, insert it into the 3rd lens tube on the microscope,
and then insert the microscope camera to enjoy the observing!!! -
Microscopes
Full HD 1080P 60FPS 2K 3800W 38MP Hdmi Video Microscope Camera
Sale!Original price was: ₹8,500.00.₹6,800.00Current price is: ₹6,800.00.
Read moreFULL HD 1080P 60FPS 2K 3800W 38MP HDMI USB INDUSTRIAL ELECTRONIC DIGITAL VIDEO MICROSCOPE CAMERA
- MODEL:1714
- WEIGHT:0.40kg
Sensor :Panasonic CMOS
Optical format:1/2.3 inchpixel size:1.335μm x1.335μmInterface:HDMI(Type A).USB(Type B).TF CardImage resolution:21MegaPixelVideo record resolution:2K@30FPS 1080p@60FPSHDMI resoltion:1920*1080p 60FPSCan output with USB at the same timeHDMI scale:Support 4:3,16:9,16:10 screenUSB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPSCan output with HDMI at the same timeTF card:MAX 64GBAWB:WB color correction/Auto/ManualR.G.B value setting independentExposure:Auto/Manual.AE value can setCross lines:8lines.Can set color& width& positionScale mark lines:2lines.Dotted lines:2lines.Can set color& width& positionSharpness Contrast Color gain:SupportMono Negative:SupportMirror:Horizontal vertical mirrorLanguage:English/simplified ChineseDigital Zoom:SupportIR remoter:SupportVoltage in:DC 12V 55-21mm sizePower consumption:MAX 0.15W 12V,0.12ALens interface:C/CS口Net weight:180gGross weight:400gCamera size:74*74*35mmPackaging size:160*100*80mmQuestions Solutions:LCD no video or flicker1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.2.Check lens cover. Increase the lighting.LCD have black bar Image warp1.change resolution of LCD2.change resolution of cameraHave dirty spot1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanserPackage incluede:1 x Microscope Camera 38MP1 x Power Adapter1 x IR remoter ( Without Battery )1 x HDMI Lines1 x Paper Manual
