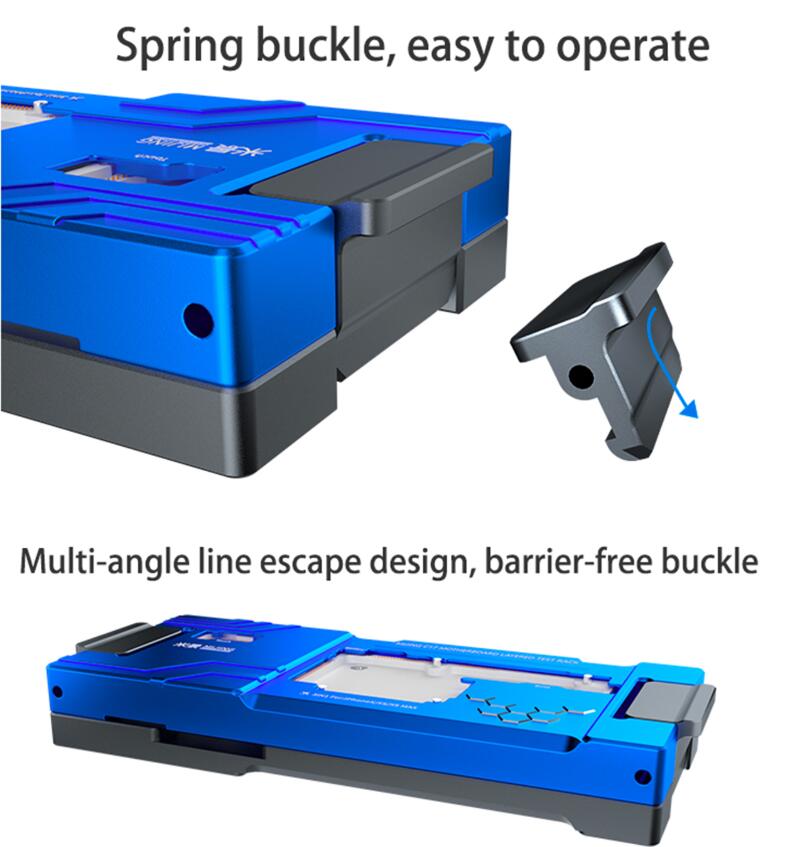

MiJing C17 for iPhone X/XS/XS Max Main Board Function Testing Fixture - Image 2

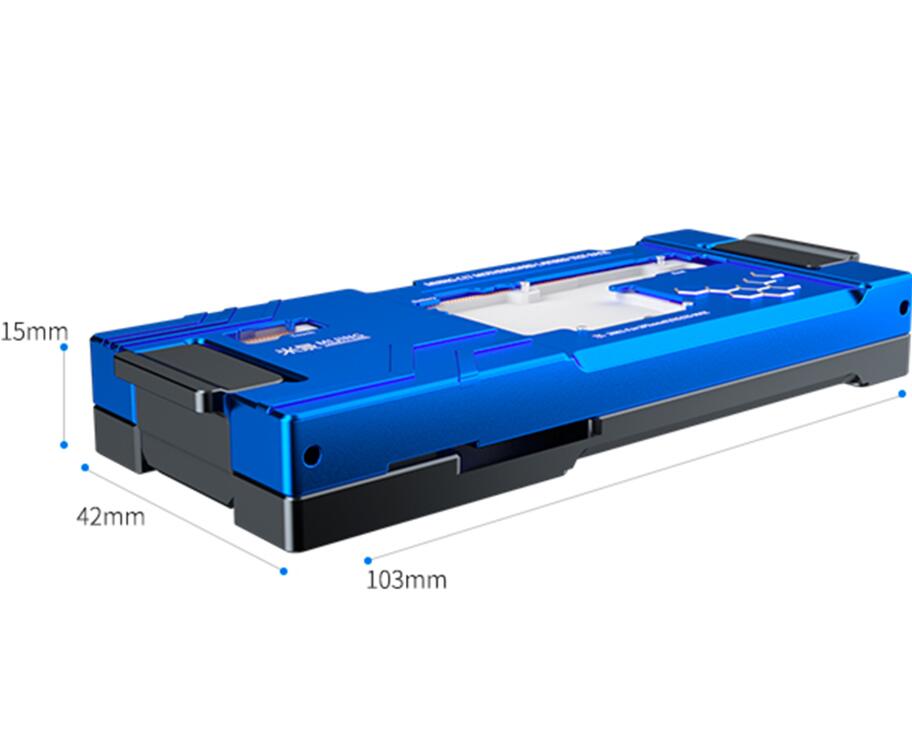

MiJing C17 for iPhone X/XS/XS Max Main Board Function Testing Fixture - Image 3

MiJing C17 for iPhone X/XS/XS Max Main Board Function Testing Fixture - Image 4

MiJing C17 for iPhone X/XS/XS Max Main Board Function Testing Fixture - Image 5

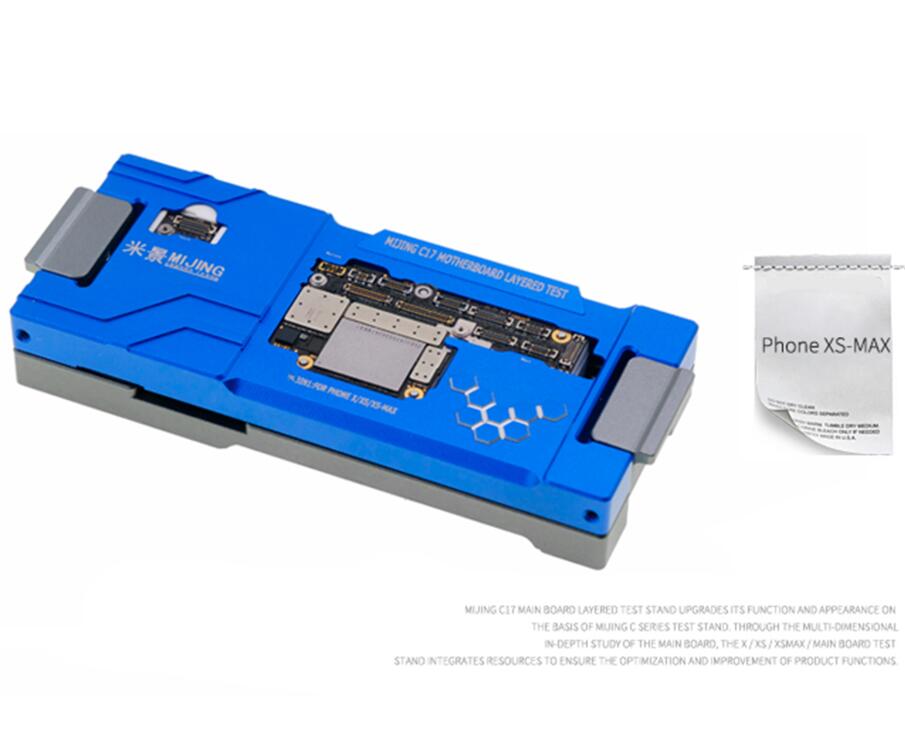

MiJing C17 for iPhone X/XS/XS Max Main Board Function Testing Fixture - Image 6

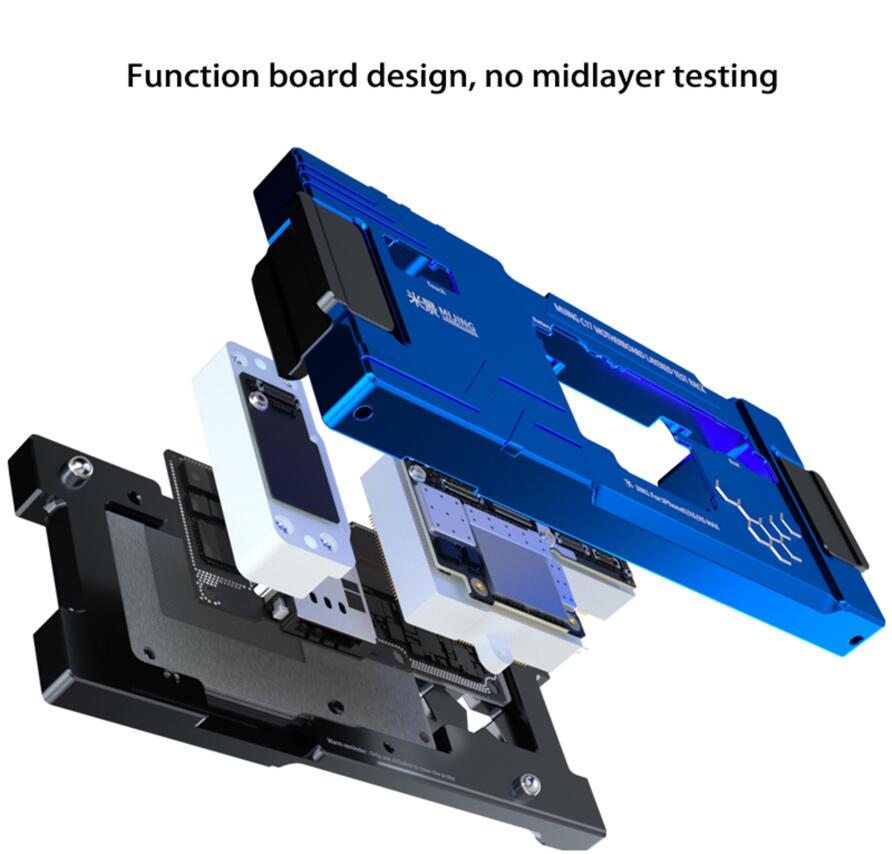

MiJing C17 for iPhone X/XS/XS Max Main Board Function Testing Fixture - Image 7

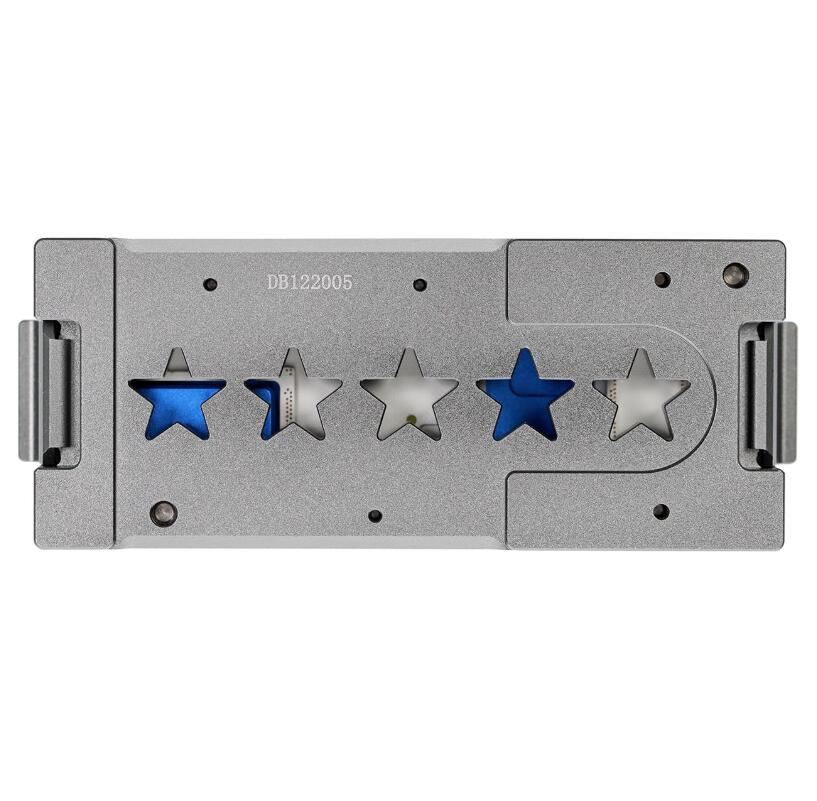

MiJing C17 for iPhone X/XS/XS Max Main Board Function Testing Fixture - Image 8

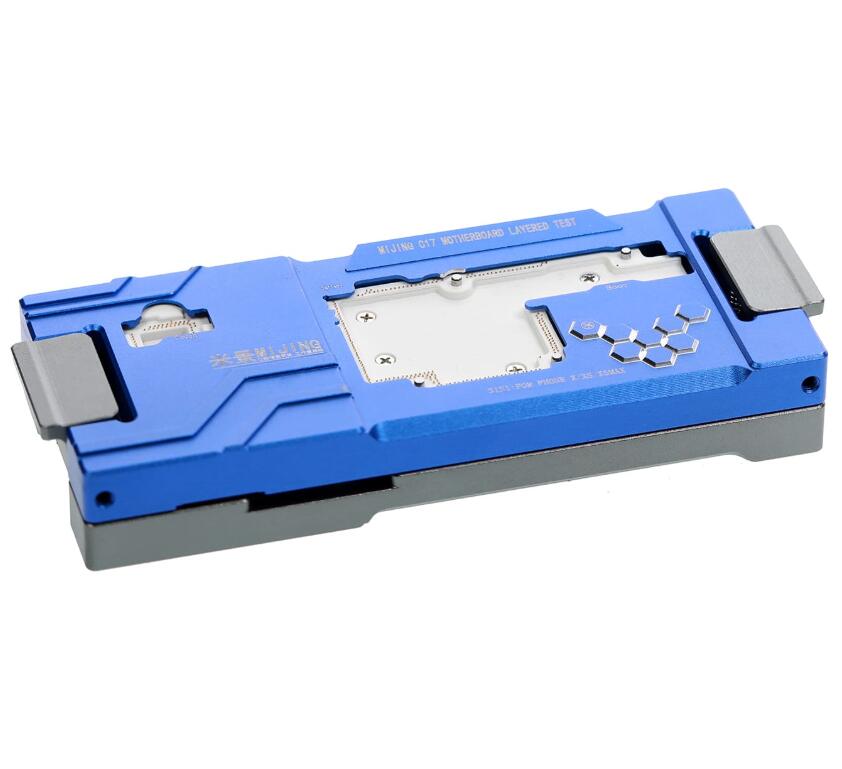

MiJing C17 for iPhone X/XS/XS Max Main Board Function Testing Fixture

Name: MiJing C17 for iPhone X/XS/XS Max Main Board Function Testing Fixture
SKU: 1933
Price: 7552.00 INR
Availability: InStock

₹7,552.00

Shipping Charges Extra

(Offline Number For Best Price:-9891425554)

Continue Shopping Category: Preheater Tags: MiJing C17, mijing isocket

Ask for help

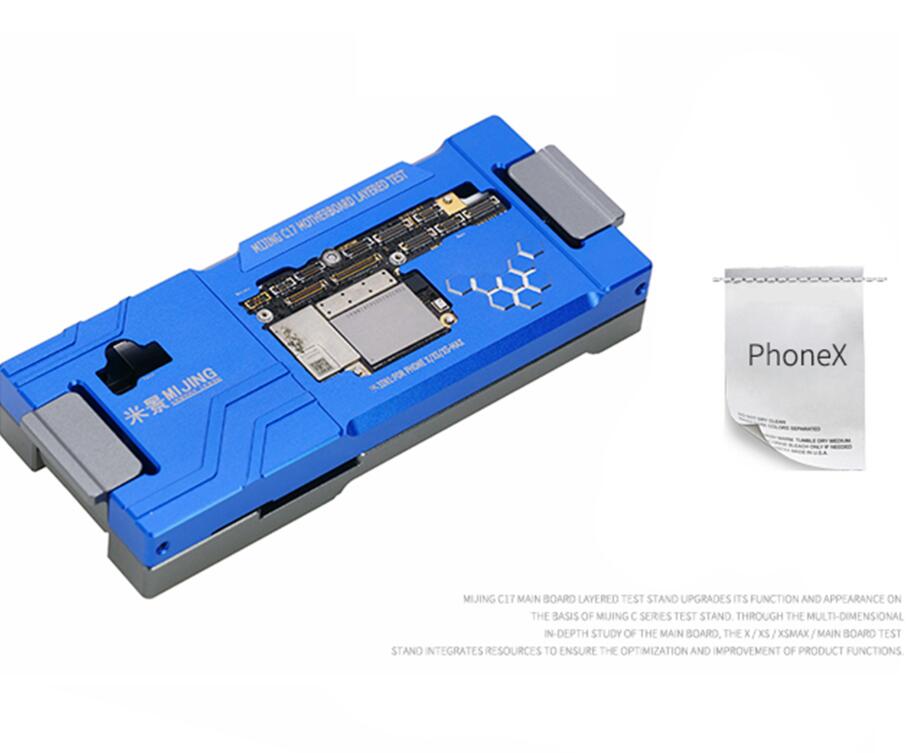

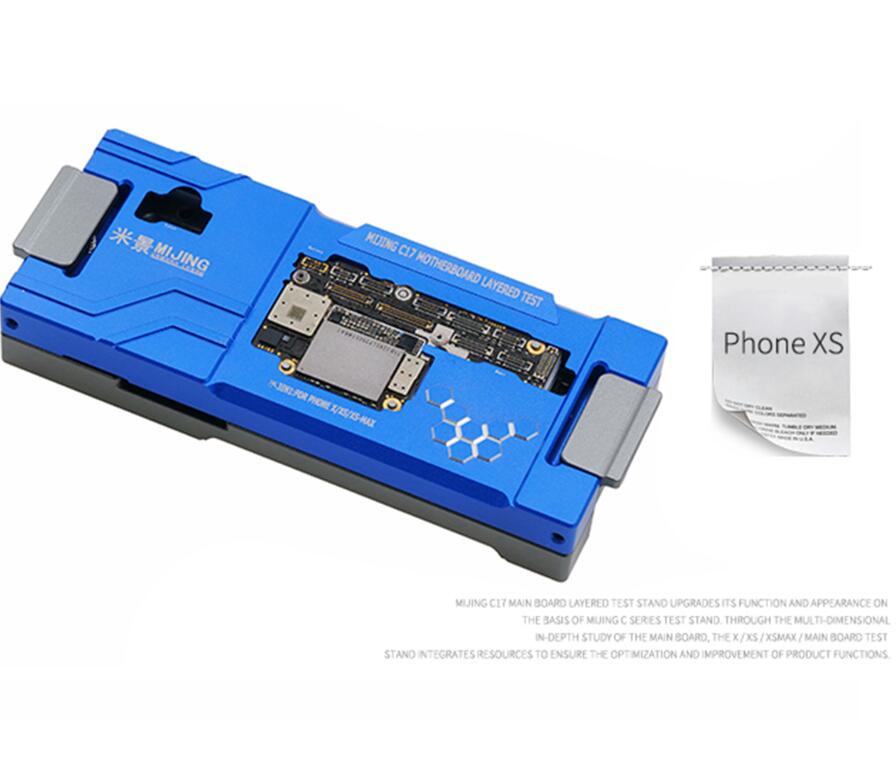

MiJing C17 for iPhone X/XS/XS Max Main Board Function Testing Fixture

Easy to use, connect the upper and lower motherboards for testing/repair, avoid problems after installation, increase maintenance speed
Check in advance to avoid duplicate disassembling and breaking the motherboard
Small size, easy to carry.

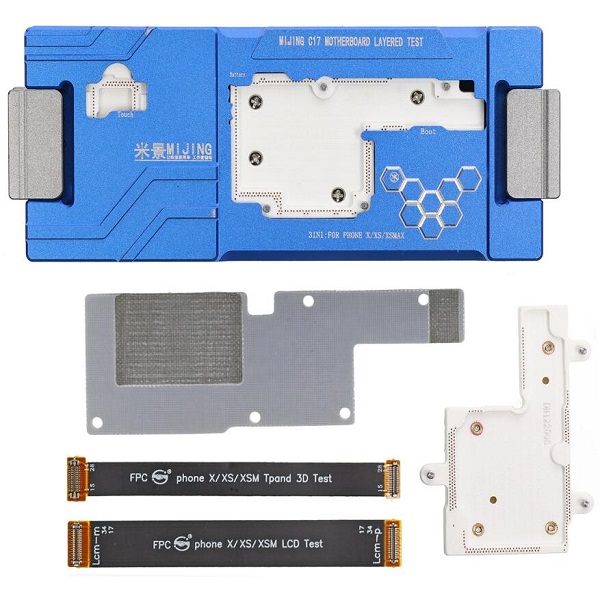

Operational Process:
1, Prepare

Power On/Off Cable*1
Power Line*1
LCD Test Cable*1
Screen*1
Main Board*1

2, Decomposition iPhone x/xs/xsmax Middle Layer simply equipped the test fixture.

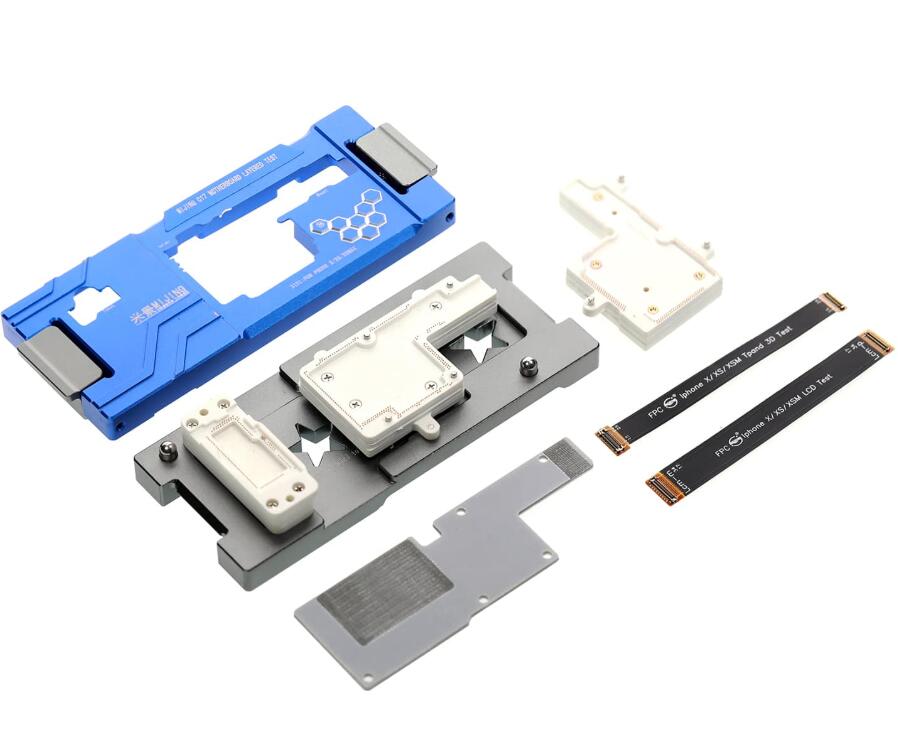

3, Install: Put in the lower main board, put on the pin board, put the top board in, and then cover the test rack.

4, The first way to connect the screen line,boot,power cord or battery test ink success or not. The second way is to connect the end plug on the base of the first method to implement the brush function.
